61 - Chiusure universali per armadi
Description
Economy and efficiency are the hallmarks of this versatile latch design for lightweight applications. Installation is simple, with single round-hole panel preparation and a press-fit retainer clip. Grip adjustment is quick and versatile, with set-screw positioning and long shaft options.
With these universal cabinet series latches, you simply choose your actuator style and shaft length and everything else is easy €“ installation, adjustment, and operation.
- Easy to install, simply press retainer clip onto shaft assembly
- Set screw on pawl permits easy grip adjustment in field, to maximum allowed by shaft length
- Optional flush cup mount requires no special panel prep, simply anchor cups with retainer clip on shaft
Available Options

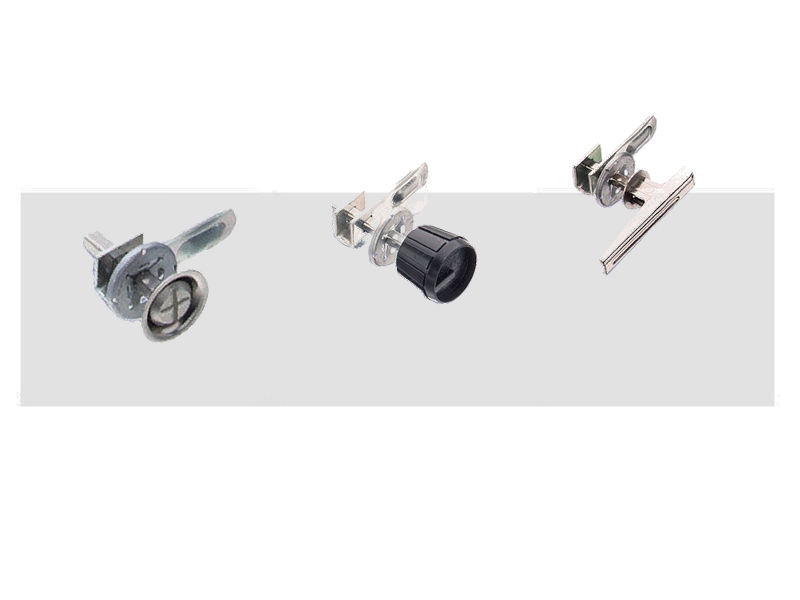

- Le opzioni di attuazione comprendono: maniglia a L in acciaio, versioni a taglio e pomello in termoplastica.
- Scodellino con montaggio a filo disponibile per l'attuatore a taglio
- Il fermaglio rende l'installazione pi๠semplice e rapida
Standards and Specifications
- Maximum working load is 110 N (25 lbs.)
- Maximum grip for L-handle style is up to 32 mm (1.25")
- Maximum grip for knob style is up to 44.5 mm (1.75")
- Maximum grip for slotted style is up to 57 mm (2.25")
Brands
Southco
