HTC

Request information

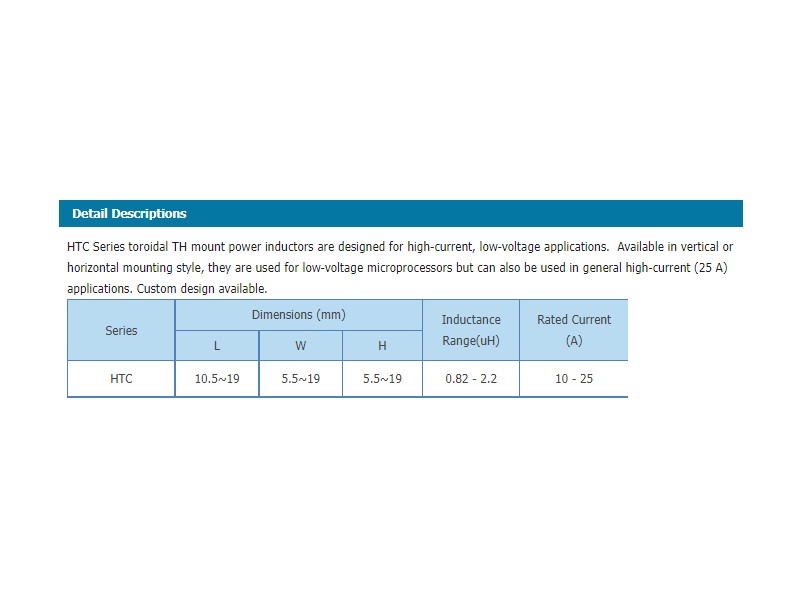

Description

Features

  • DC/DC converter, EMI filter applications
  • Designed for high current, low voltage
  • Horizontal or vertical mount
  • Toroid core offers compact size, minimum EMI
  • Operating temperature -40 to +85 °C
  • Inductance test at 100KHz, 0.1Vrms.
  • Current to cause 40°C temperature rise.

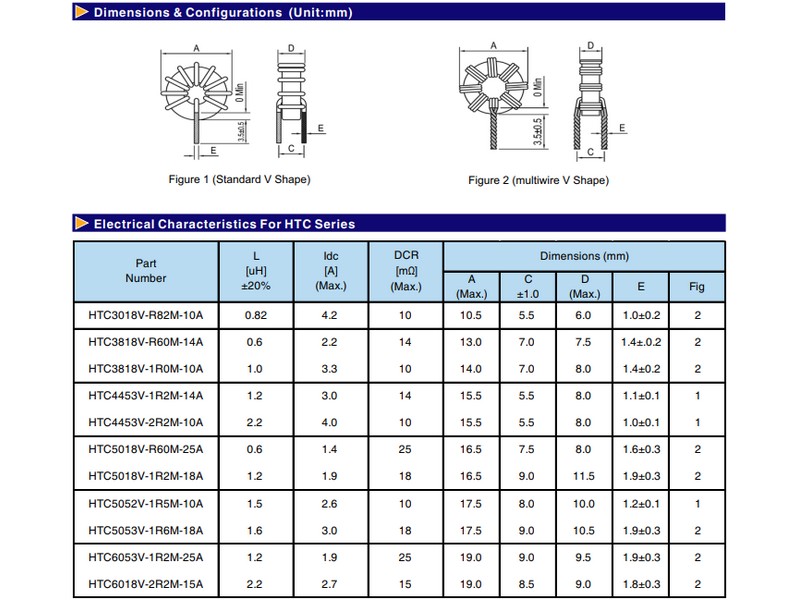

Product Identification:

HTC 5052 V - 1R5 M - 10A

  • 1. Type:  High Current Toroidal Coil
  • 2. Core style: OD=0.5"(12.7mm). "52" is material
  • 3. Shape: "V. H. F. U" shape
  • 4. Inductance: Example: 101 for 100uH
  • 5. Inductance tolerance: L: ±15%; M: ±20%
  • 6. Rated Current

Brands

Meisongbei

Features

  • DC/DC converter, EMI filter applications
  • Designed for high current, low voltage
  • Horizontal or vertical mount
  • Toroid core offers compact size, minimum EMI
  • Operating temperature -40 to +85 °C
  • Inductance test at 100KHz, 0.1Vrms.
  • Current to cause 40°C temperature rise.

Product Identification:

HTC 5052 V - 1R5 M - 10A

  • 1. Type:  High Current Toroidal Coil
  • 2. Core style: OD=0.5"(12.7mm). "52" is material
  • 3. Shape: "V. H. F. U" shape
  • 4. Inductance: Example: 101 for 100uH
  • 5. Inductance tolerance: L: ±15%; M: ±20%
  • 6. Rated Current
